LCD Systems selection

SUPPLIER AND ENGINEERING RESOURCE FOR DISPLAY TECHNOLOGIES

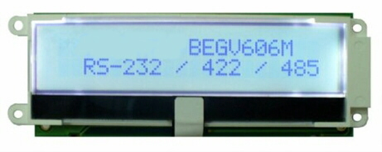

BEGV606M

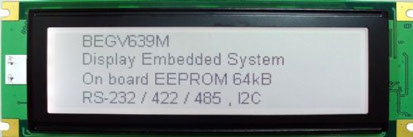

BEGV639M

  • SPECS

    • High performance, Low power PIC 16-bit microprocessor
    • Built-in 64KB ISP Flash memory / 8KB SRAM
    • On board updateable 64KB EEPROM (128KB option)
    • 1 x RS485 / 422 / 232, 1 x RS232
    • Current consumption 35mA
    • 20 x 2 character monochrome STN LCD, with font bank
    • On-chip power-on reset (POR) and programmable
       watchdog reset
    • RS485 / 422 / 232 driver, I²C EEPROM driver,
       LCM driver and utility are supported
    • Dimension (W x H x D): 116 x 37 x 15mm
  • SPECS

    • High performance, Low power PIC 16-bit microprocessor
    • Built-in 64KB ISP Flash memory / 8KB SRAM
    • On board updateable 64KB EEPROM (128KB option)
    • 1 x RS485 / 422 / 232, 1 x RS232
    • Current consumption 35mA
    • 20 x 2 character monochrome STN LCD, with font bank
    • On-chip power-on reset (POR) and programmable watchdog reset
    • RS485 / 422 / 232 driver, I²C EEPROM driver, LCM driver
       and utility are supported
    • Dimension (W x H x D): 116 x 37 x 15mm

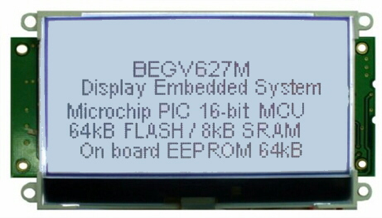

BEGV627M

BEGV641A

  • SPECS

    • High performance, Low power PIC 16-bit microprocessor
    • Built-in 64KB ISP Flash memory / 8KB SRAM
    • On board updateable 64KB EEPROM (128KB option)
    • 1 x RS485 / 422 / 232, 1 x RS232
    • Current consumption 180mA
    • On-chip power-on reset (POR) and programmable watchdog reset
    • 128 x 64 monochrome STN LCD
    • RS485 / 422 / 232 driver, I²C EEPROM driver,
    • Touch panel driver, LCM driver and utility are supported
    • Dimension (W x H x D): 93 x 70 x 15mm
  • SPECS

    • High performance, Low power AVR 8-bit microprocessor
    • Built in 64KB Flash memory/4KB SRAM
    • On board updateable 128KB EEPROM
    • One isolated RS485/422/232
    • High speed SPI and I2C
    • Lower voltage operation to 3.3V
    • Built in 4 wired resistive touch Panel
    • 240X128 Monochrome STN LCD
    • On-chip power-on reset(POR) and programmable watchdog reset
    • RS485/422/232 driver, SPI driver, I2C Driver, Touch Panel driver
       and utility and LCM driver are supported.

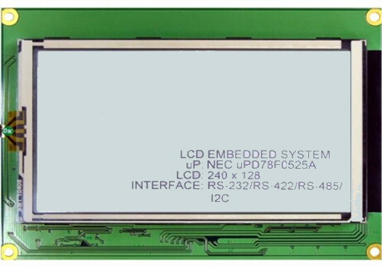

BEGV641N

BEGV643A

  • SPECS

    • High performance, Low power NEC 8-bit microprocessor
    • Built in 60KB ISP Flash memory/3KB SRAM
    • On board updateable 128KB EEPROM
    • One isolated RS485/422/232,1xRS232
    • Low voltage operation to 3.3V
    • Built-in 4-wired resistive touch panel
    • 240 x 128 monochrome STN LCD
    • Built-in JIS Level 1&2 Kanji ROM
    • RS485/422/232 driver, I2C EEPROM Driver, touch panel
       driver,utility and LCM driver are supported.
    • Dimension (W x H x D): 144 x 104 x 20mm

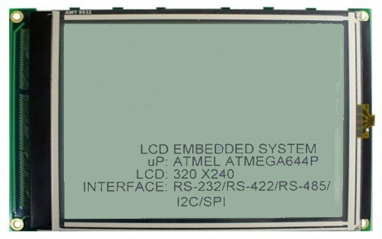

  • SPECS

    • High performance, Low power AVR 8-bit microprocessor
    • Built in 64KB Flash memory/4KB SRAM
    • On board updateable 128KB EEPROM
    • One isolated RS485/422/232
    • High speed SPI and I2C
    • Lower voltage operation to 3.3V
    • Built in 4 wired resistive touch Panel
    • 320X240 Monochrome STN LCD
    • On-chip power-on reset(POR) and programmable watchdog reset
    • RS485/422/232 driver, SPI driver, I2C Driver, Touch Panel driver
       and utility and LCM driver are supported.

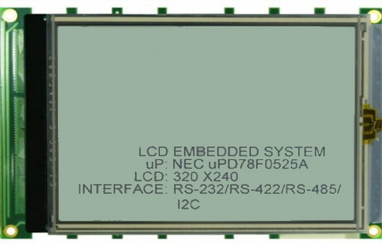

BEGV643N

BT070DHNNHH$

  • SPECS

    • High performance, Low power NEC 8-bit microprocessor Built in
       64KB Flash memory/4KB SRAM
    • Built in 60KB ISP Flash memory/3KB SRAM
    • On board updateable 128KB EEPROM
    • One isolated RS485/422/232,1xRS232
    • Low voltage operation to 3.3V
    • Built-in 4-wired resistive touch panel
    • 320 x 240 monochrome STN LCD
    • Built-in JIS Level 1&2 Kanji ROM
    • On-chip power-on reset(POR) and programmable watchdog reset
    • Comprehensive set of development tools and application notes
       for self programming.
    • RS485/422/232 driver, I2C EEPROM Driver, touch panel driver
       utility and LCM driver are supported.
    • Dimension (W x H x D): 160 x 109 x 16.5mm
  • SPECS

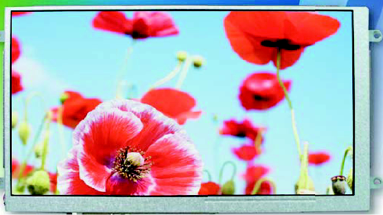

    TFT LCD

    • 7.0 inch TFT LCD panel SBT070DHNNHH$
    • View angle (U/D/L/R): 60/70/70/70
    • Resolution: 800*(RGB)
       *480(pixels), 0.1905 (h) x 0.1905 (v) mm dot pitch
    • Brightness (cd/m²): 350cd/m² Typical
    • Contrast Ratio: 400:1
    • Active Area: 152.4*91.44mm
    • Dimension (W x H x T): 165*104.44*5.2mm

    Video Board

    • Power Requirements: 12.0V DC±10%
    • Operating Temperature Range: -20~ +70°C
    • Storage Temperature Range: -30~ +80°C
    • Dimension (W x H x T): 162*100*14 mm
    • Keyboard: 6 Keys with OSD menu for
       image quality tuning supported
    • Mulit-imput: VGA imput
    • Imput impedance 75Ω

BEGX581A

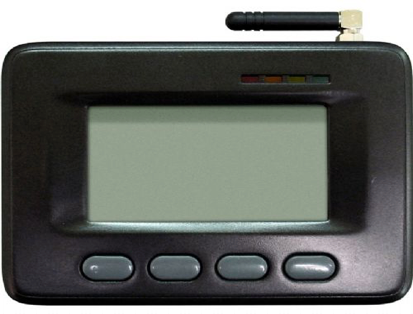

BEMA101A Automatic Vehicle Locater

  • SPECS

    • High performance, Low power NEC 8-bit microprocessor Built in
       64KB Flash memory/4KB SRAM
    • Built in 60KB ISP Flash memory/3KB SRAM
    • On board updateable 128KB EEPROM
    • One isolated RS485/422/232,1xRS232
    • Low voltage operation to 3.3V
    • Built-in 4-wired resistive touch panel
    • 320 x 240 monochrome STN LCD
    • Built-in JIS Level 1&2 Kanji ROM
    • On-chip power-on reset(POR) and programmable watchdog reset
    • Comprehensive set of development tools and application notes
       for self programming.
    • RS485/422/232 driver, I2C EEPROM Driver, touch panel driver
       utility and LCM driver are supported.
    • Dimension (W x H x D): 160 x 109 x 16.5mm
  • SPECS

    • Low power ARM 32-bit Cortex –M3 CPU
    • 256KB Flash and 48KB SRAM
    • On board GSM/
    • GPS Module(Option)
    • Build in Battery Charger Circuit
    • 5XIO port/ 1xAD in port/ 2XRS232 port
    • Wide temperature operation

BEMA103A Automatic Vehicle Locater

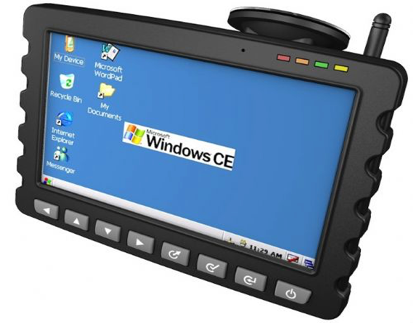

BETA903A Mobile Data Terminal

  • SPECS

    • Low power ARM 32-bit Cortex –M3 CPU
    • 256KB Flash and 48KB SRAM
    • On board GSM/
    • GPS Module(Option)
    • Build in Battery Charger Circuit
    • 5XIO port/ 1xAD in port/ 2XRS232 port
    • Key-matrix(or Touch Panel)interface
    • 128 x 64 STN LCD
    • Wide temperature operation
  • SPECS

    • 400/533MHz 32 bit RISC architecture ARM920T CPU Core
    • 2GB NAND Flash/ 64MB DDR2/512KB SRAM
    • WINCE5.0 OS
    • 8 interruptible
    • 4 x I/O/1 x Host USB/1 x Device USB/2 x RS232
    • On board GSM/GPS module
    • 7” TFT 16:9 Display with 800X480 resolution
    • DSP based Audio Codec via IIS-bus interface
    • Built in 2W amplifier / Earphone
    • Support SD/HS-MMC card
    •  4-wired touch panel interface (option)
    • 9V~28V DC requirement
    • Backup charger circuit inside
    • With car Holder
